Characteristics:
★Computerized numerical control, automatic cutting
★Position anywhere, cutting through, half-cutting(Basic functions),Pressing mark、writing、ink-jet(selective functions)
★High-precision guide module is firstly applied for this industry
★ Optical Coupler from Japan Omron
★Blade material is tungsten steel from Japan
★Vacuum bump from Taiwan ZAMDET, make accurate positioning by adsorption
★Top-grade metal keyboard and LCD control panel
★Aluminum structure, durable use and look.
★Provide remote guide for installation, training, after-sales service, free upgrade cutting software
★The warranty period for whole machine is one year, excluding the below factors:
--- Not strictly operating machine by guide book
--- Not regularly maintaining machine
---Man-made damage
Plate Cutting machine TD series
Characteristics:
★Computerized numerical control, automatic cutting
★Position anywhere, cutting through, half-cutting(Basic functions),Pressing mark、writing、ink-jet(selective functions)
★High-precision guide module is firstly applied for this industry
★ Optical Coupler from Japan Omron
★Blade material is tungsten steel from Japan
★Vacuum bump from Taiwan ZAMDET, make accurate positioning by adsorption
★Top-grade metal keyboard and LCD control panel
★Aluminum structure, durable use and look.
★Provide remote guide for installation, training, after-sales service, free upgrade cutting software
★The warranty period for whole machine is one year, excluding the below factors:
--- Not strictly operating machine by guide book
--- Not regularly maintaining machine
---Man-made damage
Specifications:
|
P/N.
|
JR-0906TD
|
JR-1209TD
|
JR-1512TD
|
JR-1812TD
|
|
(mm)
Cutting Area
|
900*600
|
1200*900
|
1500*1200
|
1800*1200
|
|
(mm/s)
Max Speed
|
1200
|
1200
|
1200
|
1200
|
|
(mm)
Max thickness
|
2
|
2
|
2
|
2
|
|
(mm)
Cutting accuracy
|
≤0.05
|
≤0.1
|
≤0.1
|
≤0.1
|
|
(mm)
Min. Cycle Dia.
|
1
|
1
|
1
|
1
|
|
Output Port
|
Ethernet Port
|
|
File format
|
HP-GL compatible format, including DXF, CDR, AI etc.
|
|
Position way
|
Vacuum adsorption
|
|
Voltage
|
AC 220V±10% 50HZ/60HZ
|
|
(KWH)
Power Consumption
|
≤2
|
|
(mm)
Outline Size
|
1450*1050*950
|
1750*1350*950
|
2050*1650*950
|
2350*1650*950
|
|
(Kg)
Total Weight
|
220
|
280
|
350
|
420
|
Note: The above parameter is only for reference. We could provide customized service according to customer’s requirement.
Cutting materials:
★Flexible and non-metallic materials with max thickness 2mm, including different PET film, PVC film, PP film, reflective film, pearl film, aluminum film, mobile phone protective film, reflective films, double-sided adhesive, dust-proof net, 3 m glue, button switches, flexible circuit board (FPC), mobile phone and tablet precision die cutting parts, foam, hot melt adhesive, thermal conductive materials, white cardboard, kraft paper, coated paper, gray board paper, carbon fiber cloth etc.
Application:
★Cutting paper model for Clothes, bag and wallet, Shoes.
★Cutting film double-sided adhesive dustproof net foam and accessories for electronic industry
★Cutting double-glue for advertising products
★Cutting white paper box, plastic box, label for Package

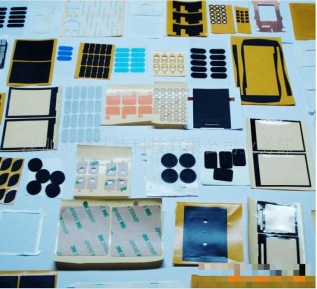

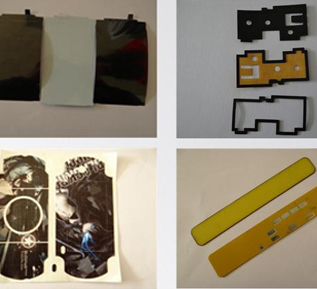

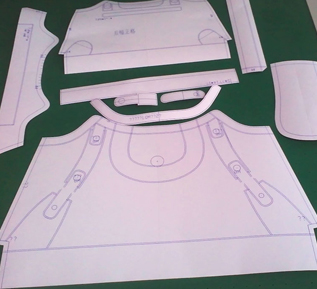

Cutting samples:
Specifications:
|
P/N.
|
JR-0906TD
|
JR-1209TD
|
JR-1512TD
|
JR-1812TD
|
|
(mm)
Cutting Area
|
900*600
|
1200*900
|
1500*1200
|
1800*1200
|
|
(mm/s)
Max Speed
|
1200
|
1200
|
1200
|
1200
|
|
(mm)
Max thickness
|
2
|
2
|
2
|
2
|
|
(mm)
Cutting accuracy
|
≤0.05
|
≤0.1
|
≤0.1
|
≤0.1
|
|
(mm)
Min. Cycle Dia.
|
1
|
1
|
1
|
1
|
|
Output Port
|
Ethernet Port
|
|
File format
|
HP-GL compatible format, including DXF, CDR, AI etc.
|
|
Position way
|
Vacuum adsorption
|
|
Voltage
|
AC 220V±10% 50HZ/60HZ
|
|
(KWH)
Power Consumption
|
≤2
|
|
(mm)
Outline Size
|
1450*1050*950
|
1750*1350*950
|
2050*1650*950
|
2350*1650*950
|
|
(Kg)
Total Weight
|
220
|
280
|
350
|
420
|
Note: The above parameter is only for reference. We could provide customized service according to customer’s requirement.
Cutting materials:
★Flexible and non-metallic materials with max thickness 2mm, including different PET film, PVC film, PP film, reflective film, pearl film, aluminum film, mobile phone protective film, reflective films, double-sided adhesive, dust-proof net, 3 m glue, button switches, flexible circuit board (FPC), mobile phone and tablet precision die cutting parts, foam, hot melt adhesive, thermal conductive materials, white cardboard, kraft paper, coated paper, gray board paper, carbon fiber cloth etc.
Application:
★Cutting paper model for Clothes, bag and wallet, Shoes.
★Cutting film double-sided adhesive dustproof net foam and accessories for electronic industry
★Cutting double-glue for advertising products
★Cutting white paper box, plastic box, label for Package
Cutting samples:
